Description

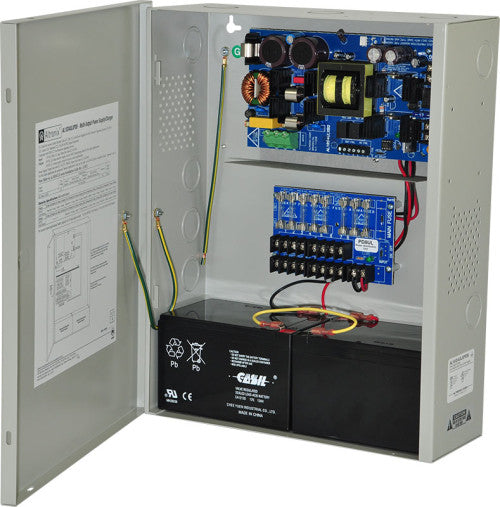

AL1024XPD8220 24&12VDC@10A/8FUSE OUT/220
AL1024XPD8220 is a multi-output power supply/charger that converts a nominal 220VAC, 50/60Hz input into eight (8) 24VDC outputs.
Input
Nominal 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A.
Input fuse rated @ 3.5A/250V.
Output
24VDC output.
10A of continuous supply current for Access Control applications.
8A of continuous supply current for Fire Alarm applications.
Eight (8) fuse protected outputs.
Output fuses are rated @ 3.5A/250VAC.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 3.6A.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0 to 49° C (32 to 120° F ).
Storage: - 20 to 70° C ( - 4 to 158° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.): 123 BTU/Hr.
System AC input VA requirement: 550VA.
