Description

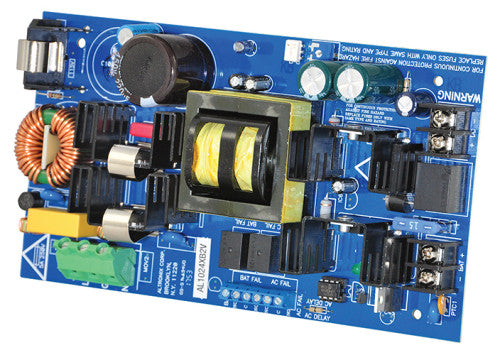

AL1024XB2V 10A ACCESS 8A FIRE BOARD 220V
Altronix AL1024XB2V power supply/charger converts a 220VAC, 50/60Hz input into a single
24VDC output. It also offers a suite of features that includes AC fail supervision, battery
presence, and low battery supervision.
Input
Nominal 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A.
Input fuse rated @ 3.5A/250V.
Output
24VDC output.
10A of continuous supply current for Access Control applications.
8A of continuous supply current for Fire Alarm applications.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Type: Sealed lead acid or gel type
Fuse Rating: 15A/32V
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts
Battery: Form “C” contacts
Indicators (LED)
Input: 220VAC is present
DC Output: Powered
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 123 BTU/Hr.
