Altronix AL1024ULXB2 10A ACCESS 8A FIRE P/S BOARD

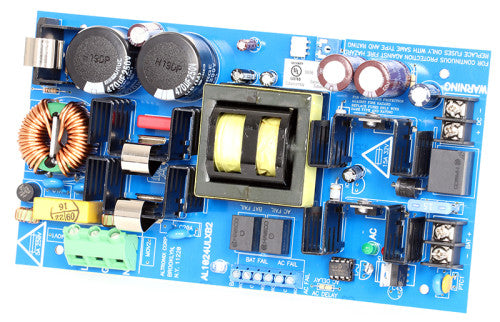

Altronix AL1024ULXB2 10A ACCESS 8A FIRE P/S BOARD Altronix AL1024ULXB2 UL Listed Sub-Assembly power supply/charger converts 115VAC, 60Hz input into a single 24VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision. Input Input 115VAC / 60Hz, 4.2A. Output 24VDC output (UL 1481). 8A continuous supply current with 10A supply current during alarm (UL 1481). 24VDC @ 10A (UL 294). Filtered and electronically regulated output. Maximum Ripple: 250mV P/P. Short circuit and thermal overload protection. Battery Charging Type: Sealed lead acid or gel type Fuse Rating: 15A/32V Failover Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery and battery presence supervision (form "C" contacts). Indicators (LED) Input: 115VAC is present DC Output: Powered Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 123 BTU/Hr.
