Description

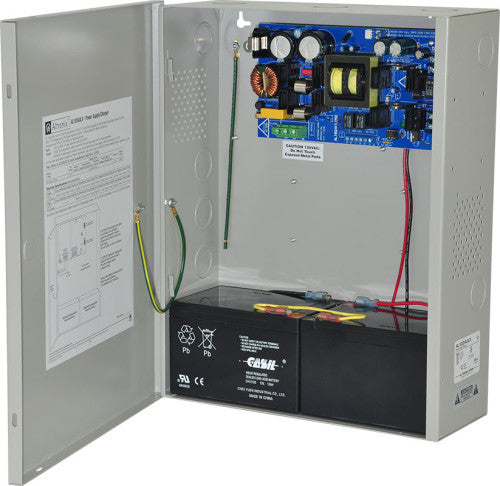

Altronix AL1024ULX UL 8A P/S CHGR ACCESS/ FIRE
AL1024ULX is a power supply/charger that converts a 115VAC, 60Hz input into a single 24VDC non-power limited output.
Input
Input 115VAC, 60Hz, 4.2A.
Input fuse rated @ 3.5A/250V.
Output
24VDC output.
10A of continuous supply current for Access Control applications.
8A of continuous supply current for Fire Alarm applications.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Maximum charge current: 3.6A.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0 to 49° C (32 to 120° F ).
Storage: - 20 to 70° C ( - 4 to 158° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.): 123 BTU/Hr.
System AC input VA requirement: 483VA.
