Description

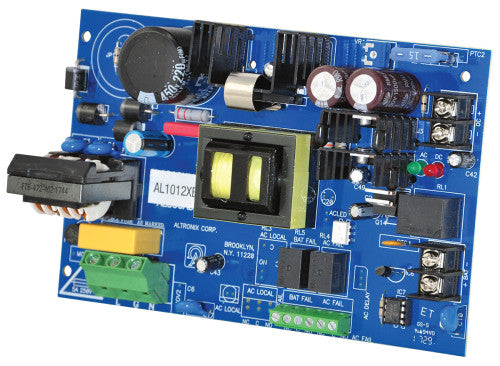

AL1012XB220 12VDC@10AMP BOARD 220V INPUT
AL1012XB220 power supply/charger converts a nominal 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single 12VDC output.
Input
Nominal 220VAC (range 198VAC-256VAC) 50/60Hz, 1.3A.
Input fuse rated @ 5A/250V.
Output
12VDC output.
10A continuous supply current.
Output fuse rated @ 15A/32V.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Type: Sealed lead acid or gel type
Fuse Rating: 15A/32V
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Supervision
AC Failure: Form “C” contacts
Battery: Form “C” contacts
Indicators (LED)
Input: 220VAC is present
DC Output: Powered
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
