Description

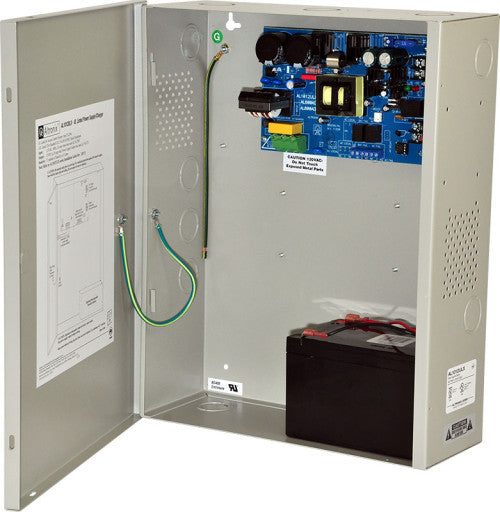

AL1012X220 10A 12VDC PWR SPLY 220V
AL1012X220 is a power supply/charger that converts a nominal 220VAC, 50/60Hz input into a single 12VDC output.
Input
Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.3A.
Input fuse rated @ 5A/250V.
Output
12VDC output.
10A continuous supply current.
Output fuse rated @ 15A/32V.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current: 0.7A.
Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0 to 49° C (32 to 120° F ).
Storage: - 20 to 70° C ( - 4 to 158° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.): 61 BTU/Hr.
System AC input VA requirement: 286VA.
