Description

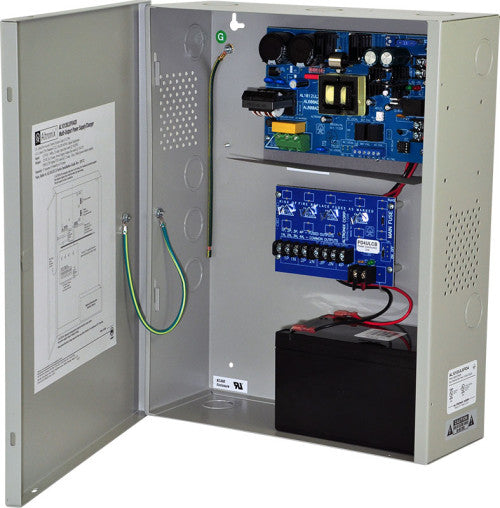

Altronix AL1012ULXPD4CB AL1012ULX W/PD4ULCB INSTALLED
AL1012ULXPD4CB is a multi-output power supply/charger that converts a 115VAC, 60Hz input into four (4) 12VDC Class 2 Rated power limited outputs.
Input
Input 115VAC, 60Hz, 1.9A.
Input fuse rated @ 5A/250V.
Output
12VDC output.
10A continuous supply current.
Four (4) Class 2 Rated PTC protected power limited outputs (auto-resettable).
Outputs are rated @ 2.5A.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current: 0.7A.
Automatic switch over to stand-by battery when AC fails.
Zero voltage drop when switched over to battery backup.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0 to 49° C (32 to 120° F ).
Storage: - 20 to 70° C ( - 4 to 158° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.): 61 BTU/Hr.
System AC input VA requirement: 299VA.
