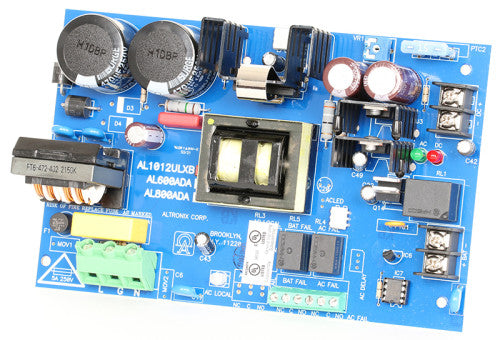

Altronix AL1012ULXB 12VDC@10AMP BOARD

Altronix AL1012ULXB 12VDC@10AMP BOARD Altronix AL1012ULXB UL Listed Sub-Assembly power supply/charger converts a 115VAC, 60Hz input into a single 12VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision. Input Input 115VAC, 60Hz, 2.6A. Input fuse rated @ 5A/250V. Output 12VDC output. 10A continuous supply current. Output fuse rated @ 15A/32V. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Indicators (LED) Input: 115VAC is present DC Output: Powered Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/Hr.
