Description

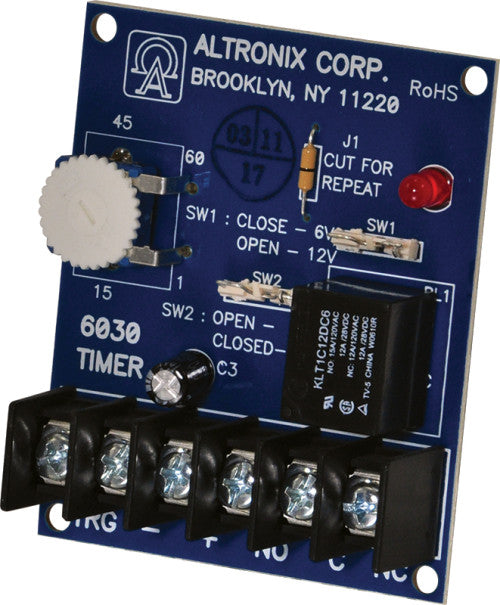

Altronix 6030 TIMER MODULE
The 6030 programmable timer is suitable for most functions that require a timed operation e.g. Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, Pulser / Flasher, etc.
Input
6VDC or 12VDC operation is selectable.
Relay
Form "C" relay contacts are 8A at 120VAC/28VDC.
Current draw stand by 3mA relay energizes at 75mA.
Relay activates at the end of the timing cycle.
Features
Quick and extremely accurate time range adjustment from 1 second to 60 minutes.
Repeat (flasher/pulse) mode.
Visual Indicators
LED indicates relay is energized.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
