Description

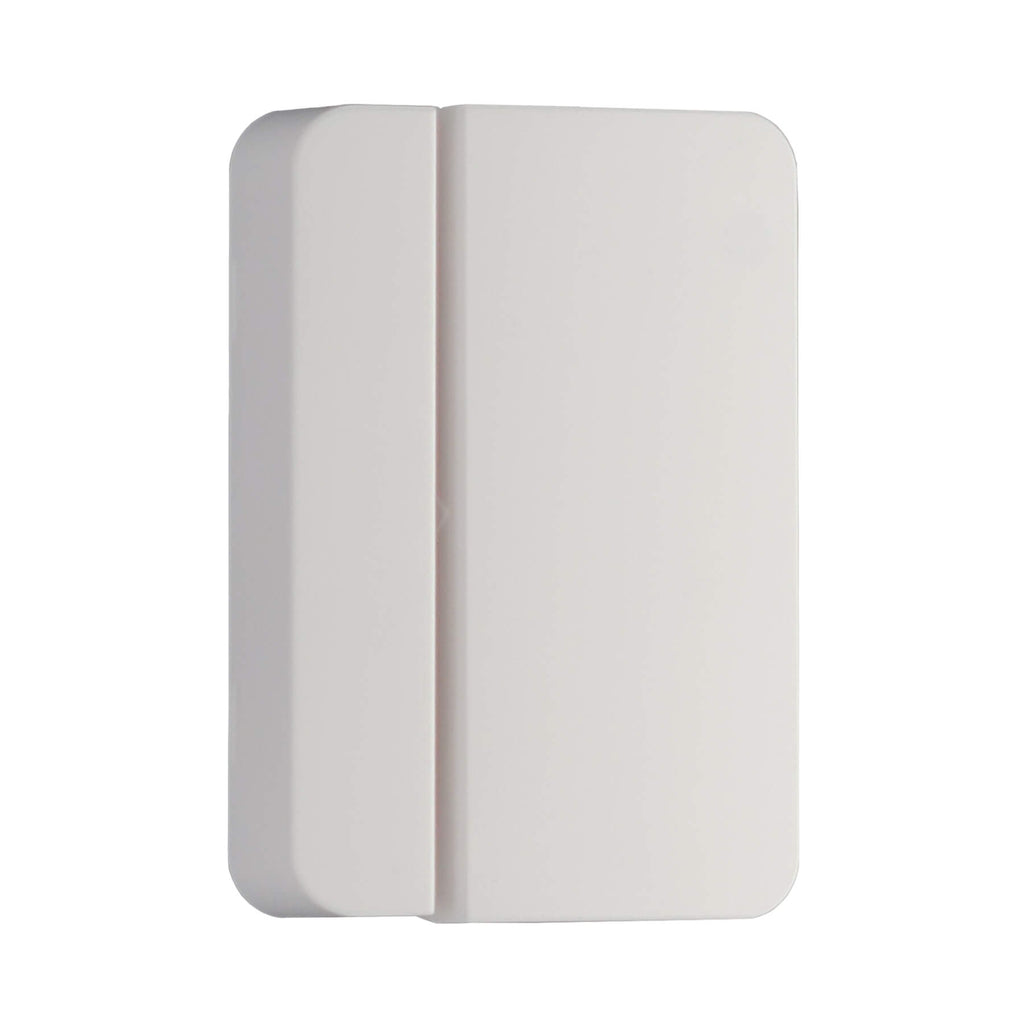

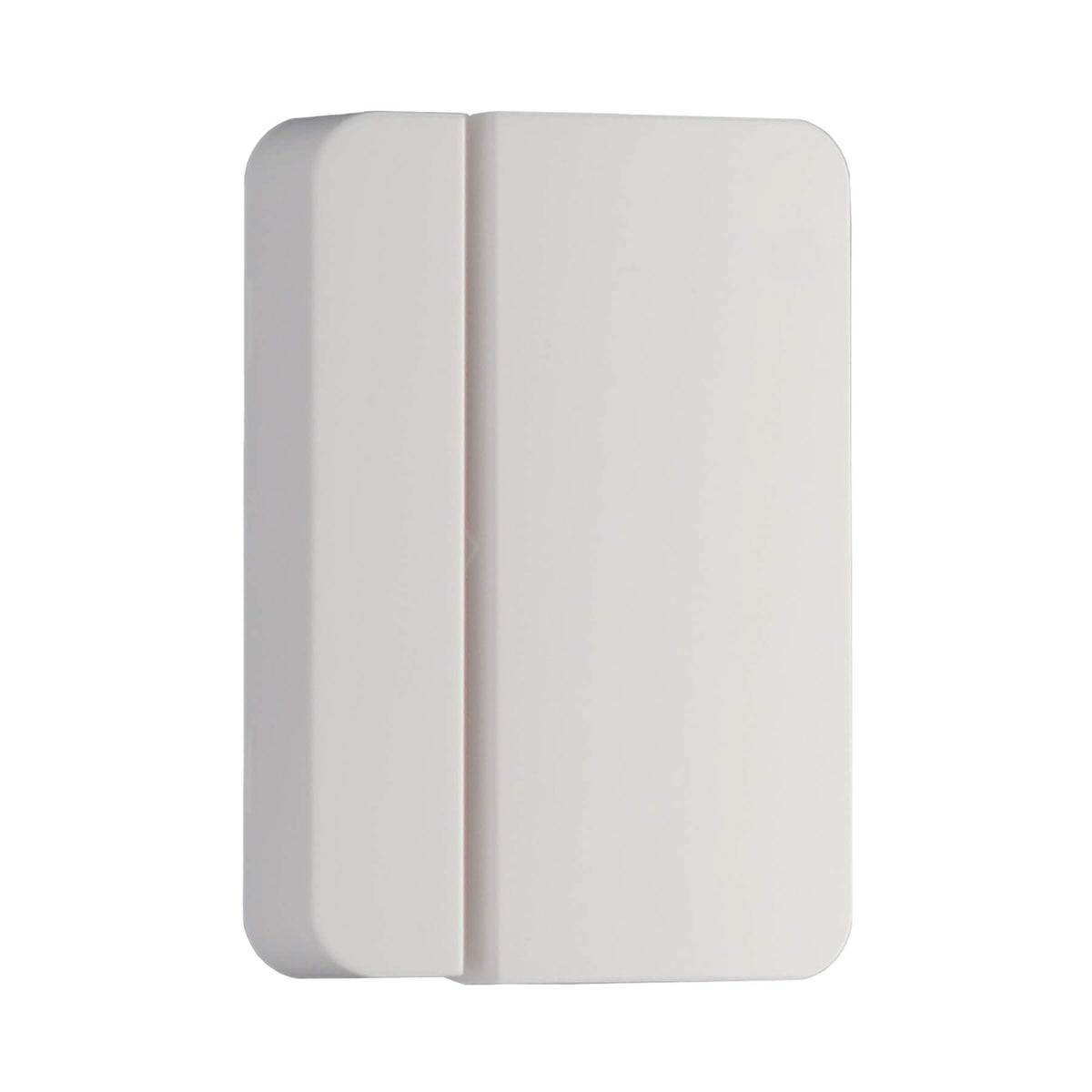

2GIG Wireless Door/Window Contact Sensor, 345MHz 2GIG-DW100-345
The 2GIG DWR100-345 is a wireless recessed door window contact sensor designed to protect your home or business. This sensor uses a 345 MHz frequency to communicate with 2GIG control panel, transmitting signals when the magnet is separated from the sensor. It can be installed on doors, windows, and many other objects that open and close. The sensor transmits in encrypted mode by default and can be set to unencrypted mode via on-board switch.
Features:
- Designed for a seamless fit with a included spacer, enabling more door and window applications.
- Battery life of up to 8 years, reducing frequent replacement and truck rolls.
- Rounded outer with square interior enables accurate installation, for optimized installer experience.
- Supports external Normally Open or Normally Closed input.
- On/Off switchable encryption.
Specs:
| Transmitter Frequency | 345MHz |
| Compatibility | 2GIG Security Panels |
| Code Outputs | Alarm; Alarm Restore; Supervisory; Low Battery; External Alarm; External Restore; Tamper; Tamper Restore |
| Supervisory Interval | 70 Minutes |
| External Input | Accepts NC or NO dry contact devices |
| Magnet Type | Rare Earth |
| Magnet Dimensions (L x W x H) | 2.42” x 0.58” x 2.42” (6.1 x 1.47 x 6.1 cm) |
| Sensor Dimensions (L x W x H) | 2.42" x 1.07" x 0.58" (6.1 x 2.7 x 1.47 cm) |
| Weight | 1.24 oz (35 g) |
| Housing Material | ABS Plastic |
| Operating Temperature | 32°-120° F (0°-49° C) |
| Relative Humidity | 5% to 90%, Non-condensing |
| Batteries (Installed) | One CR 2450 Lithium Battery |
| Certification | ETL, FCC, Industry Canada |
